| 水泥電阻器 (RG 系列) |
| FEATURES : |
 Compact type with safety design of non-flammability
and insulation |
| Low inductance |
| Stable long life |
| It can be produced according to customer's
request. |
| 特 性 : |
| 不燃與絕緣之安全設計 |
| 低電感 |
| 長期穩定性佳 |
| 可依客戶需求製作 |
| CHARACTERISTICS 性 能： |
| ITEM 項 目 |
SPEC 規 格 |
REMARKS 備 註 |
| Load life under high temperature 高溫負荷壽命 |
±5% | Rated voltage at 70℃ for 1,000 hours 額定電壓70℃ 1,000 小時 |
|
Resistance to damp heat 耐濕負荷壽命 |
±3% | 56 days；40℃ ；90 to 95% RH 56 天；40℃ ；90 to 95% RH |
| Temp. coeff. of resistance 溫度係數 |
R≦1Ω：±600ppm/℃ R>1Ω： ±350ppm/℃ |
Room temp. + 100℃ 室溫 + 100℃ |
| Short time overload 短時間過負荷 |
±2% |
10 times the rated power for 5 seconds 10 倍額定功率 5 秒 |
| Temperature cycling 溫度循環 |
±1% | 5 cycles for -55℃ ~ +155℃ 5 次-55℃ ~ +155℃ |
| Immersion in solder 焊錫耐熱 |
±1% | 350℃ for 3 seconds 350℃ 3 秒 |
| Insulation resistance 絕緣電阻 |
>100MΩ | 500V (DC)；1 minute |

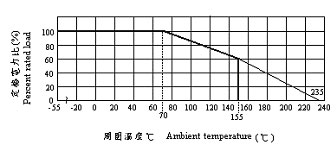

| DERATING CURVE 額定功率下降曲線
|
 |
| RATING & DIMENSIONS 額 定 & 尺 寸 |
| Model 型名 |
Power Rating 額定功率 (W) |
Resistance Range 阻值範圍 (Ω) |
Maximum Working Voltage 最高使用電壓 |
Maximum Overload Voltage 最高過負荷電壓 |
Dielectric Withstanding Voltage 耐電壓 |
Dimension 尺寸 (mm) |
||||
| W |
L |
H1 |
H2 |
P |
||||||
|
RGW3W |
3W |
0.1∼100Ω |
 |
 |
1000V |
10±1 |
25±1.5 |
10±1 |
10.5±1.0 or 15±1.0 |
9.5±1.5 |
| RGF3W |
101Ω∼39KΩ |
350V |
1000V |
|||||||
| RGW5W |
5W |
0.1∼100Ω |
|
|
1000V |
10±1 |
28±1.5 |
10±1 |
15±1.5 |
|
| RGF5W |
101Ω∼50KΩ |
350V |
1000V |
|||||||
| RGW7W |
7W |
0.1∼100Ω |
|
|
1000V |
10±1 |
36±1.5 |
10±1 |
20±1.5 |
|
| RGF7W |
101Ω∼100KΩ |
500V |
1500V |
|||||||
| RGW10W |
10W |
0.1∼100Ω |
|
|
1000V |
10±1 |
48±1.5 |
10±1 |
32±1.5 |
|
| RGF10W |
101Ω∼100KΩ |
750V |
1500V |
|||||||
| RGW15W |
15W |
1∼100Ω |
|
|
1000V |
12.5±1 |
48±1.5 |
12±1 |
32±1.5 |
|
| RGF15W |
101Ω∼100KΩ |
1000V |
1500V |
|||||||
| RGW20∼ RGF25W |
20~25W |
1∼100Ω |
|
|
1000V |
15±1 |
60±1.5 |
13±1 |
42±1.5 |
|
| 101Ω∼100KΩ |
1000V |
1500V |
||||||||
| P TYPE： |
|
|
||||||||
| Model 型名 |
Power Rating 額定功率 (W) |
Resistance Range 阻值範圍 (Ω) |
Maximum Working Voltage 最高使用電壓 |
Dimension 尺寸 (mm) |
||||
| L |
W |
H |
ι |
dφ |
||||
| RGW2W |
2 |
0.1∼100 |
150V |
18 ±1.5 |
7 ±1.0 |
7±1.0 |
23±3 |
0.8 ±0.05 |
| RGF2W |
101∼39K |
|||||||
| RGW3W |
3 |
0.1∼100 |
350V |
22 ±1.5 |
8 ±1.0 |
8±1.0 |
35±3.0 |
0.8 ±0.05 |
| RGF3W |
101∼39K |
|||||||
| RGW5W |
5 |
0.1∼100 |
350V |
22 ±1.5 |
10 ±1.0 |
9±1.0 |
35±3.0 |
0.8 ±0.05 |
| RGF5W |
101∼50K |
|||||||
| RGW7W |
7 |
0.1∼100 |
500V |
35 ±1.5 |
10 ±1.0 |
9±1.0 |
35±3.0 |
0.8 ±0.05 |
| RGF7W |
101∼100K |
|||||||
| RGW10W |
10 |
0.1∼100 |
750V |
48 ±1.5 |
10 ±1.0 |
9±1.0 |
35±3.0 |
0.8 ±0.05 |
| RGF10W |
101∼100K |
|||||||
|
RGW15W |
15 |
1∼100 |
1000V |
48 ±1.5 |
12.5 ±1.0 |
11.5±1.0 |
35±3.0 |
0.8 ±0.05 |
| RGF15W |
101∼100K |
|||||||
| RGW20 ~ RGF25W |
20 ~ 25 |
1∼100 |
1000V |
60 ±1.5 |
14 ±1.0 |
13.5±1.0 |
35±3.0 |
0.8 ±0.05 |
| 101∼100K |
||||||||
| M TYPE： |
|
|
||||||||
| Model 型名 |
Power Rating 額定功率 (W) |
Resistance Range 阻值範圍 (Ω) |
Maximum Working Voltage 最高使用電壓 |
Dimension 尺寸 (mm) |
||||
| P |
W |
H |
h |
S |
||||
| RGW2W |
2 |
0.1∼100 |
150V |
 |
11 ±1.0 |
20 ±1.5 |
3.5±1.0 |
7 ±1.0 |
| RGF2W |
101∼39K |
|||||||
| RGW3W |
3 |
0.1∼100 |
350V |
|
12 ±1.0 |
25 ±1.5 |
3.5±1.0 |
8 ±1.0 |
| RGF3W |
101∼39K |
|||||||
| RGW5W |
5 |
0.1∼100 |
350V |
|
13 ±1.0 |
25 ±1.5 |
3.5±1.0 |
9 ±1.0 |
| RGF5W |
101∼50K |
|||||||
| RGW7W |
7 |
0.1∼100 |
500V |
|
13 ±1.0 |
39 ±1.5 |
3.5±1.0 |
9 ±1.0 |
| RGF7W |
101∼100K |
|||||||
| RGW10W |
10 |
0.1∼100 |
750V |
|
13 ±1.0 |
51 ±1.5 |
3.5±1.0 |
9 ±1.0 |
| RGF10W |
101∼100K |
|||||||
| RGW10WS |
10S |
0.1∼100 |
750V |
 |
16 ±1.0 |
35 ±1.5 |
3.5±1.0 |
12 ±1.0 |
| RGF10WS |
101∼100K |
|||||||
| T TYPE： |
 |
||||||||
| Model 型名 |
Power Rating 額定功率 (W) |
Resistance Range 阻值範圍 (Ω) |
Maximum Working Voltage 最高使用電壓 |
Dimension 尺寸 (mm) |
||||
| L |
W |
H |
ι |
t |
||||
| RGW5W |
5 |
0.1∼100 |
350V |
22±1.5 |
10±1.0 |
9±1.0 |
35±3.0 |
1.5±0.5 |
| RGF5W |
101∼50K |
|||||||
| RGW7W |
7 |
0.1∼100 |
500V |
35±1.5 |
10±1.0 |
9±1.0 |
35±3.0 |
3.0±0.5 |
| RGF7W |
101∼100K |
|||||||
| RGW10W |
10 |
0.1∼100 |
750V |
48±1.5 |
10±1.0 |
9±1.0 |
35±3.0 |
3.0±0.5 |
| RGF10W |
101∼100K |
|||||||
| S TYPE： |
|
|
||||||||
| Model 型名 |
Power Rating 額定功率 (W) |
Resistance Range 阻值範圍 (Ω) |
Maximum Working Voltage 最高使用電壓 |
Dimension 尺寸 (mm) |
||||
| L |
H |
H1 |
K |
h |
||||
| RGW7W |
7 |
0.1∼100 |
500V |
46±1.5 |
28±0.5 |
7.0±0.5 |
6.5±0.5 |
4.0±0.3 |
| RGF7W |
101∼100K |
|||||||
| RGW10W |
10 |
0.1∼100 |
750V |
60±1.5 |
28±0.5 |
7.0±0.5 |
20±0.5 |
4.0±0.3 |
| RGF10W |
101∼100K |
|||||||
.| H TYPE： |
 |
||||||||
| Rated Power 額定功率 |
Dimension 尺寸 (mm) |
|||||||
| W |
H |
L |
P |
H1 |
D |
P1 |
P2 |
|
| 10W |
10.0±1 |
10.0±1 |
48.0±1.5 |
32.0±1 |
21.0±1 |
5.0±0.5 |
2.5±0.2 |
1.7±0.2 |
| 15W |
12.5±1 |
11.5±1 |
48.0±1.5 |
32.0±1 |
21.0±1 |
5.0±0.5 |
2.5±0.2 |
1.7±0.2 |
| 20W |
14.5±1 |
13.5±1 |
60.0±1.5 |
42.0±1 |
24.0±1 |
6.0±0.5 |
3.0±0.2 |
2.5±0.2 |
| 30W |
19.0±1 |
19.0±1 |
75.0±1.5 |
55.0±2 |
31.0±1 |
7.5±0.5 |
------ |
------ |
| 40W |
19.0±1 |
19.0±1 |
90.0±1.5 |
67.0±2 |
31.0±1 |
7.5±0.5 |
------ |
------ |
 |
 |
