Metal-Clad Power Wirewound Resistors (AL Series)

An aluminum encased consists of an alloy metal coil-type resistance element assembled into an aluminum enclosure. Following high-temperature anodization, the enclosure is filled with a special non-flammable cement paste and after hardening, insulation is applied through a high-temperature process. Since the component is embedded in the heat-proof cement, it is not affected by external mechanical force, dusty environments, and extreme duty. It is durable, vibration-proof, dissipates heat well, and has a low temperature coefficient, with resistance varying in direct proportion. Supporting a flexible range of applications, the product is easy to utilize and install. Applications include industrial machinery, load testing, electric power distribution, instruments, and automated control installations. For custom specifications, please contact us to discuss the details.

Performance Specifications

Test Item

Test Methods

Characteristics

Resistance tolerance

JIS-C-5202 5-1

Resistance

1≦R

Nominal

1>R

Tolerance

±5% (J) ±10% (K)

Temperature coefficient

JIS-C-5202 5-2

±400PPM/°C MAX

Power rating load

JIS-C-5202 5-4

ΔR/R≦ ±(0.5%+0.1Ω) surface temperature up 350°C Max.

Short-term overload

JIS-C-5202 5-5

1000% rated power 5 seconds

Free of appearance or structural irregularity

ΔR/R≦ ±(2%+0.1Ω)

Insulation resistance

JIS-C-5202 5-6 1000VDC

100MΩ min

Dielectric withstanding voltage

JIS-C-5202 5-7

1000VDC 1 minute between terminal

and anchor stand

Free of appearance or structural irregularity

ΔR/R≦±(0.1%+0.05Ω)

Terminal strength

JIS-C-5202 6-1 8Kg 30 seconds

Free of appearance or structural irregularity

Resistor strength

JIS-C-5202 6-2 30Kg 30 seconds

Free of appearance or structural irregularity

Vibration

JIS-C-5202 6-3

1.5m/m 10 ~ 50 ~ 10 Hz/min X-Y-Z

2 hours each

Free of appearance or structural irregularity

Surface coating crack ΔR/R≦ ±(1%+0.05Ω)

Thermal shock

JIS-C-5202 7-3

Room temp 30 minutes ON-55°C 15

minutes OFF

Resistor free of structural irregularity

ΔR/R≦ ±(2%+0.1Ω)

Humidity

JIS-C-5202 7-5

40°C 90% RH 240 hours

Free of appearance or structural irregularity

Surface coating crack ΔR/R≦ ±(3%+0.1Ω)

Load life

JIS-C-5202 7-10

90 minutes ON - 30 minutes OFF 500

hours

Free of appearance or structural irregularity

Surface coating crack ΔR/R≦±(3%+0.1Ω)

Flame retardation

JIS-C-5202 7-13-3-2

100% - 600% rated power load

US UL-94 flame retardation test V-0 grade

noncombustible

Remarks:

1. Resistance and resistance tolerance were tested in-house with micro resistance meter.

2. Resistor coating refers to UL-certified data provided by supplier.

1. ASQ TYPE					High Voltage, Aluminum Encased

Power Rating	Dimensions (mm)									Resistance Range (Ω)
Power Rating	A	B	C	D	E	F	G	H	Weight	Resistance Range (Ω)
60 W	100	30	13	90	4.5	0.75mm*2	75	400	66/g	1-10KΩ
80 W	150	34	21	140	5	0.75mm*2	125	400	170/g	1-10KΩ
120 W	182	42	21	172	6	0.75mm*2	150	400	175/g	1-10KΩ

2. ASH TYPE					High Voltage, Aluminum Encased

Power Rating	Dimensions (mm)										Resistance Range (Ω)
Power Rating	A	B	C	D	E	F	G	H	I	Weight	Resistance Range (Ω)
200 W	200	65	45	185	6	M5x8mm	160	300	2mm*2	725/g	1-10KΩ
300 W	280	65	45	265	6	M5x8mm	240	300	2mm*2	1050/g	1-10KΩ
400 W	360	65	45	345	6	M5x8mm	320	300	2mm*2	1295/g	1-10KΩ
500 W	440	65	45	425	6	M5x8mm	400	300	2mm*2	1650/g	1-10KΩ
600 W	520	65	45	505	6	M5x8mm	480	300	2mm*2	1935/g	1-10KΩ

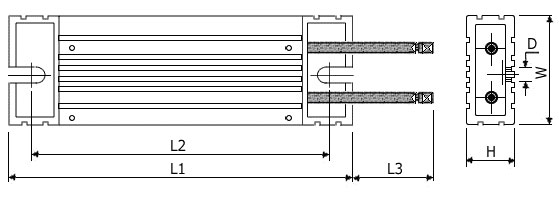

3. ASZ TYPE					High Voltage, Aluminum Encased

Power Rating	Dimensions (mm)								Resistance Range (Ω)
Power Rating	W±1	H±1	L±2	L2±2		D±0.5G	L3±10I	Weight	Resistance Range (Ω)
60 W	40	20	115	100		5.2	200	165/g	2-2KΩ
80 W	40	20	140	125		5.2	200	190/g	2-2.5KΩ
100 W	40	20	165	150		5.2	200	225/g	2-3KΩ
120 W	40	20	190	175		5.2	200	275/g	3-4KΩ
150 W	40	20	215	200		5.2	200	310/g	3-5KΩ
200 W	60	30	165	150		5.2	300	500/g	3-6KΩ
300 W	60	30	215	200		5.2	300	675/g	5-7KΩ
400 W	60	30	265	250		5.2	300	850/g	5-8KΩ
600 W	60	30	335	320		5.2	300	1070/g	5-9KΩ
800 W	60	30	400	385		5.2	300	1250/g	5-10KΩ
1500 W	130	80	485	440				4300/g	15-1KΩ
Notice: All dimensions might be changed or modified, please refer to last updating specification.

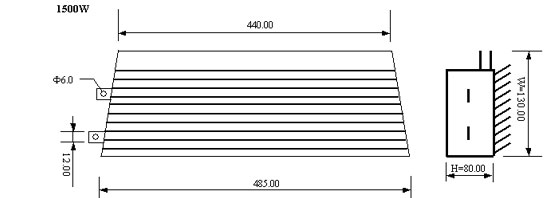

3-1. ASZ TYPE-1500W					High Voltage, Aluminum Encased

How to Order
ASQ	400 W	N	20 Ω	G

Product Type	Rated Power	Assembly Method	Resistance Value (Ω)	Resistance Tolerance
ASQ type ASH type ASZ type	60 W~120 W 200 W~600 W 60 W~800 W	G-Horizontal mount N-No mounts Z-Vertical mount	(Ω) indicatesresistance value in units of ohms.	J=± 5 % K=±10 %
