ITEM 項 目
|
SPEC 規 格
|
REMARKS 備 註
|
|
Resistance
抵抗值
|

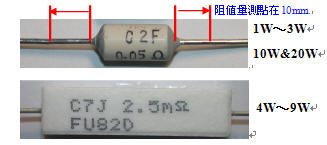

See photo
|
JIS C 5201-1 Measuring points on inner edges of
10mm
測量點在兩側10mm
|
|
Load life under high temperature
高溫負荷壽命
|
±5%
|
JIS C 5201-1 Rated voltage at 70℃ for 1000 hours
(4.25.1) 額定電壓70℃ 1000 小時
|
|
Resistance to damp heat
耐高溫高濕
|
±5%
|
JIS C 5201-1 Rated voltage at 40℃,95% RH for 1000
hours
(4.24) 額定電壓40℃,95% RH 1000 小時
|
|
Temp. coeff. of resistance
溫度係數
|
±100ppm/℃
|
JIS C 5201-1 Room temp. + 100℃
室溫 + 100℃
|
|
Short time overload
短時間過負荷
|
±1%
|
JIS C 5201-1 6.25 times the rated power for 5
seconds
(4.13) 6.25倍額定功率 5 秒
|
|
Temperature cycling
溫度循環
|
±1%
|
JIS C 5201-1 5 cycles for –25℃±3℃(30min)；room
(4.19) temp.(30min)~ +85℃±3℃(30min)
room temp.(30min)
|
|
Resistance to soldering heat
焊錫耐熱
|
±1%
|
JIS C 5201-1 260℃±5 ℃ for 10 seconds(焊錫槽)
(4.18) 350℃±10 ℃ for 3.5 seconds(手焊錫)
|
|
Insulation resistance
絕緣電阻
|
>10G
|
JIS C 5201-1 500 V Insulation test 1min
(4.6.1.1) 500 V絕緣測試電壓1min
|
Compact type with safety
design of non-flammability
