高頻陶瓷繞線晶片電感 (WL 系列)




Scope :
Ceramic body and wire wound construction provide highest SRFs available.

Features
:
Ceramic base provide high SRF
Ultra-compact inductors provide high Q factors
Low profile, high current are available
Miniature SMD chip inductor for fully automated assembly
Outstanding endurance from Pull-up force, mechanical shock and pressure
Tighter tolerance down to ±2%
Smaller size of 0402 (1005)


Applications :
RF Products:
Cellular Phone (CDMA/GSM/PHS)
Cordless Phone (DECT/CT1CT2)
Remote Control, Security System
Wireless PDA
WLL, Wireless LAN / Mouse / Keyboard / Earphone
VCO, RF Module & Other Wireless Products
Base Station, Repeater
GPS Receiver

Broad Band Applications:
CATV Filter, Tuner
Cable Modem/ XDSL Tuner
Set Top Box

IT Applications:
USB 2.0
IEEE 1394

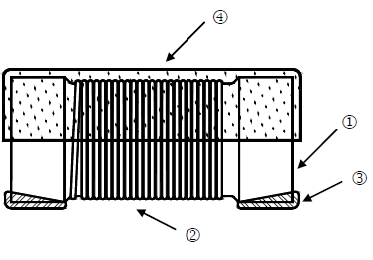

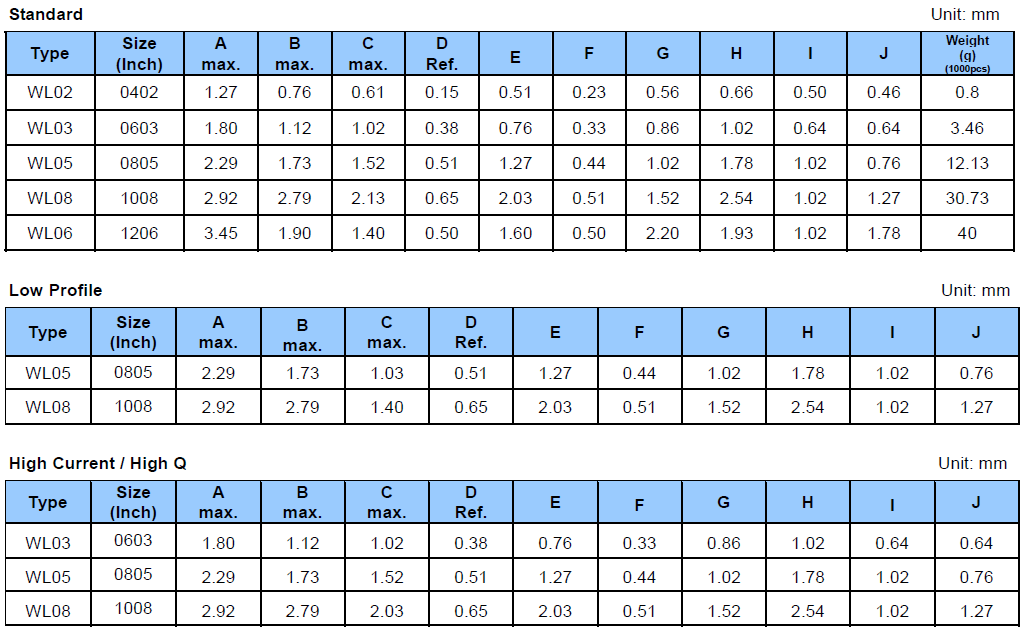

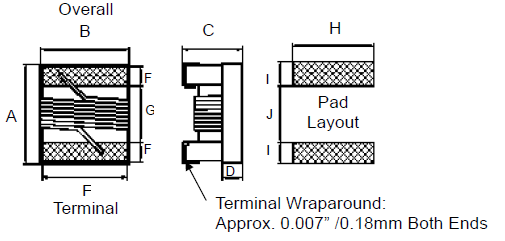

Construction & Dimension :



           Unit: mm



         Color Coding :
         0603 / 0805 / 1008 / 1206 Type (0402 Type is No Color Coding)
         Because of small sizes, these parts are marked with a single color dot.
         The inductance value represented by the dot is shown on the data page for each type.

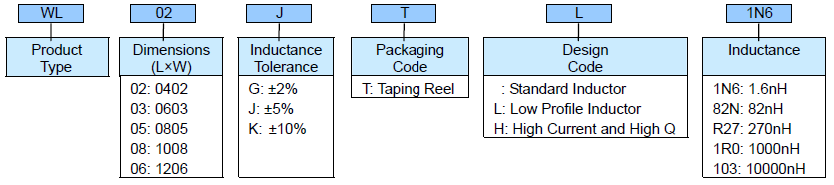

Part Numbering :

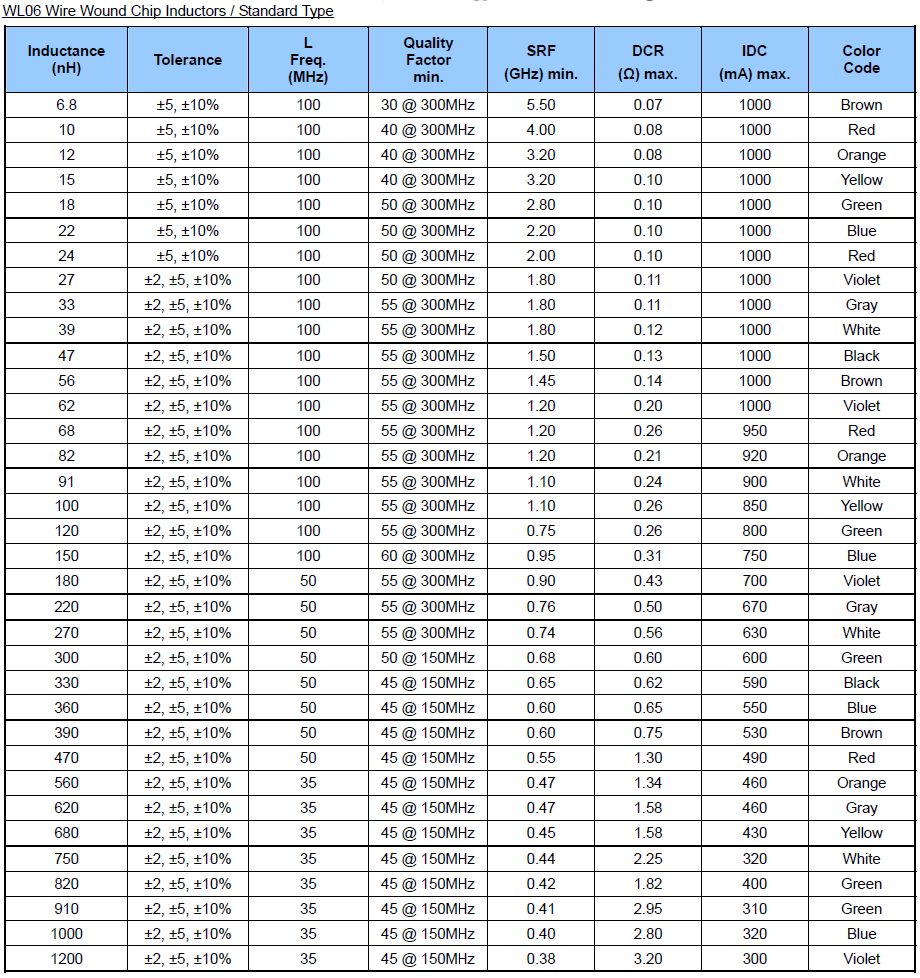

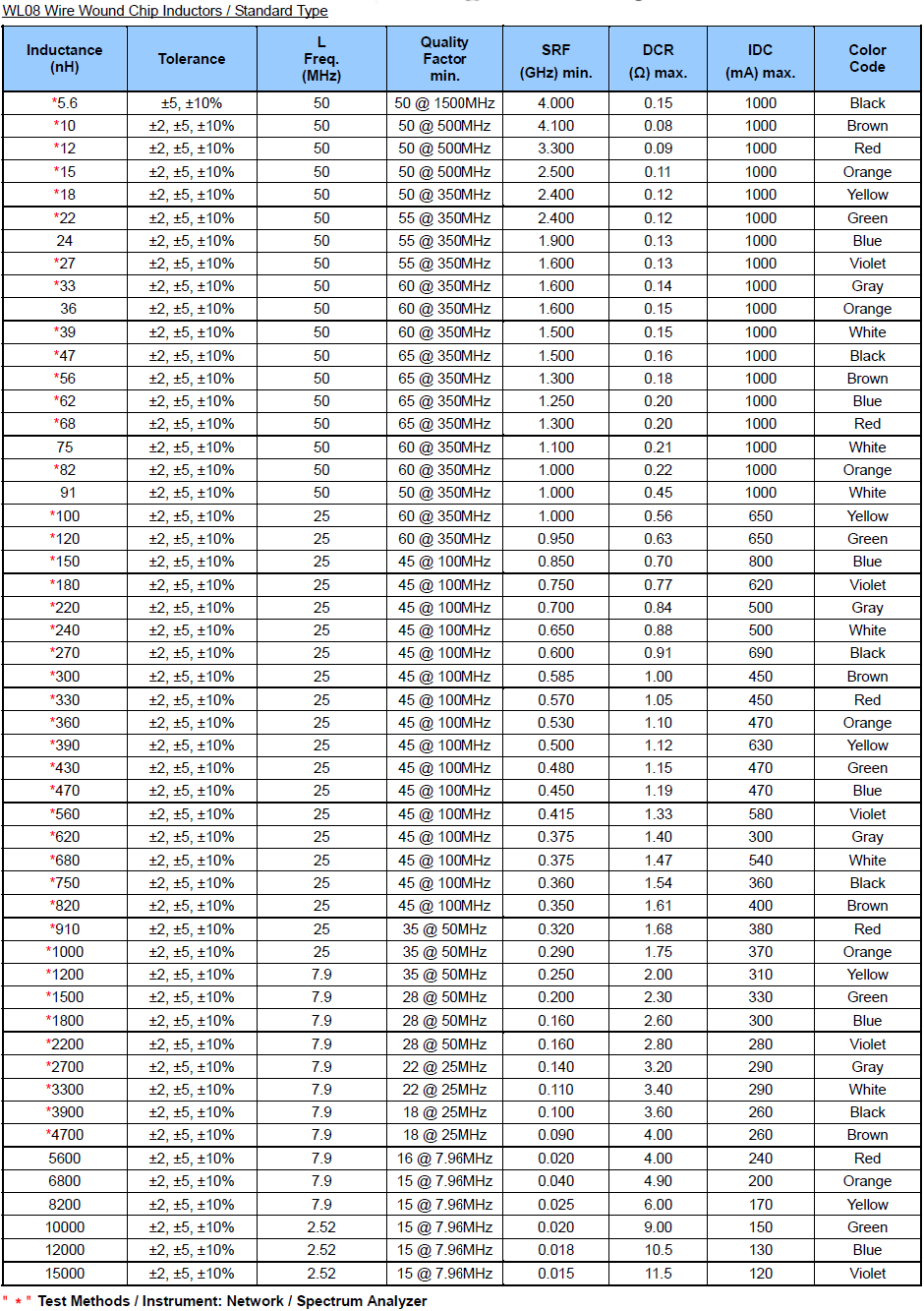

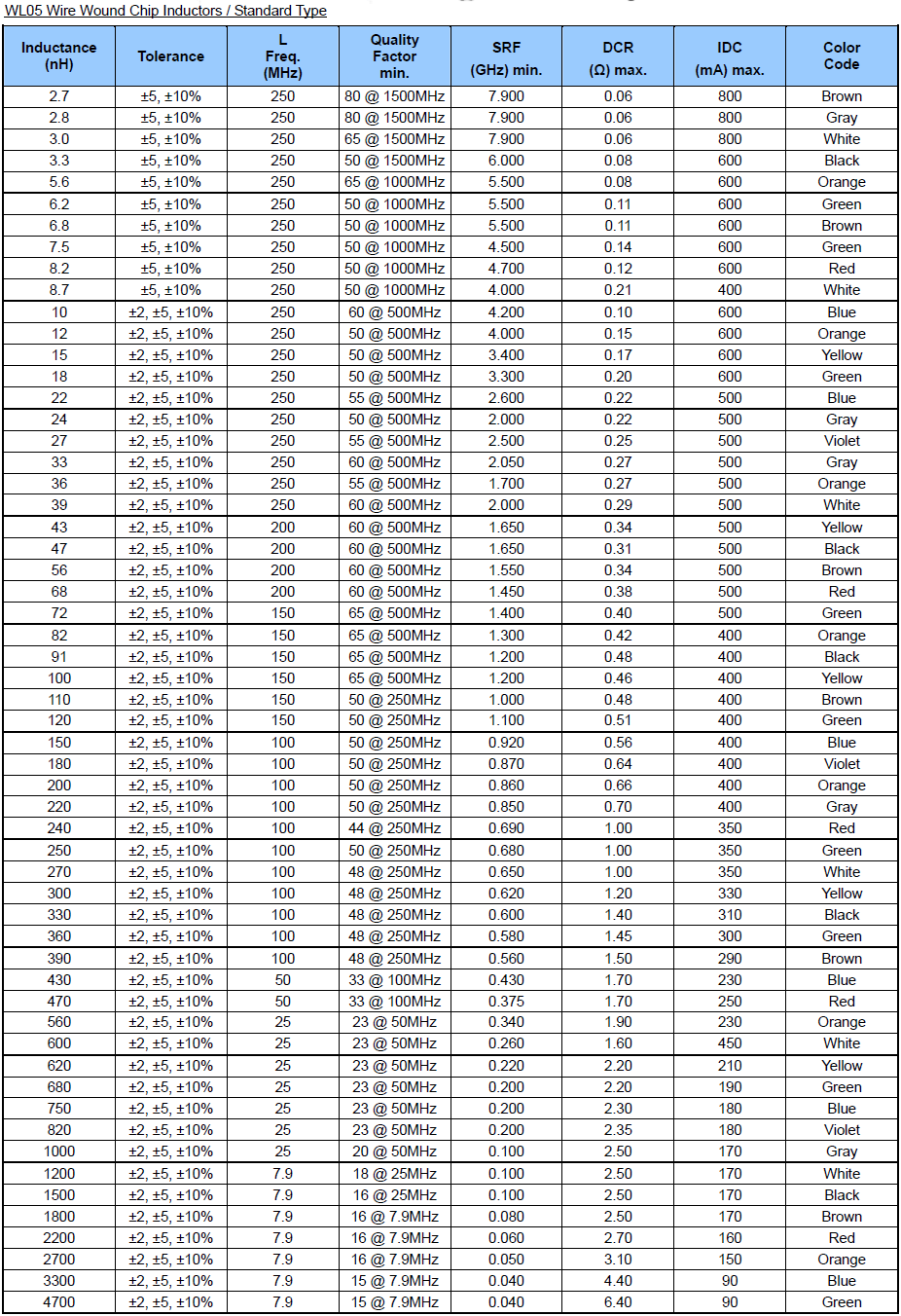

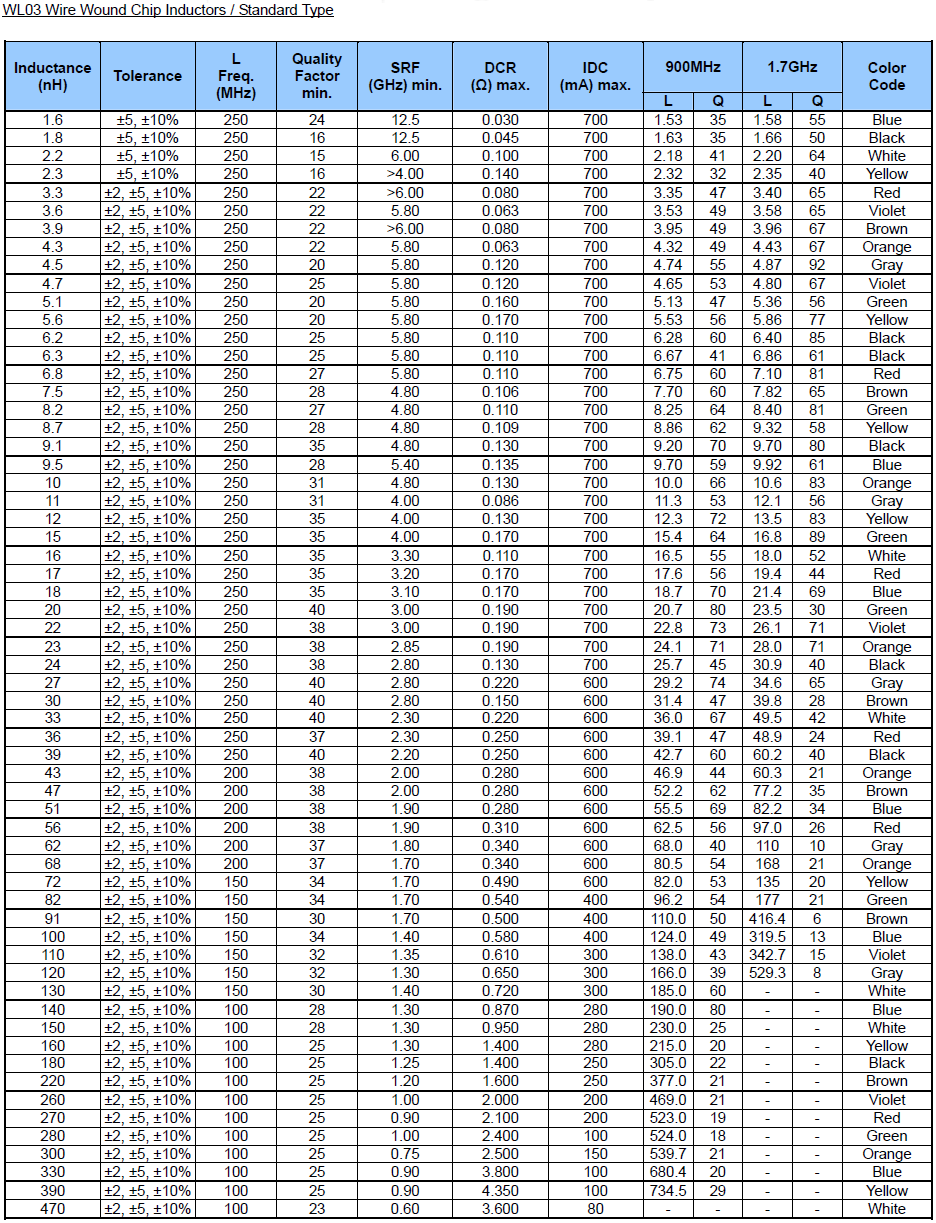

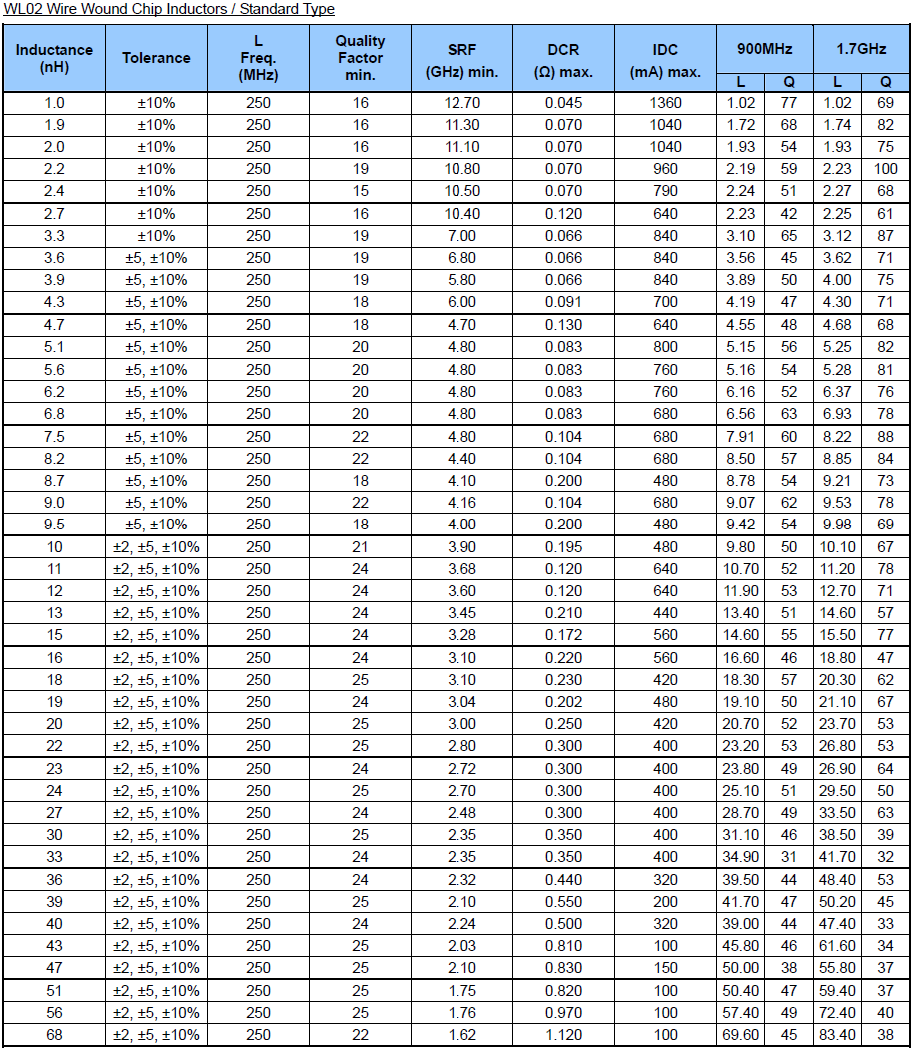

          Standard Electrical Specifications:

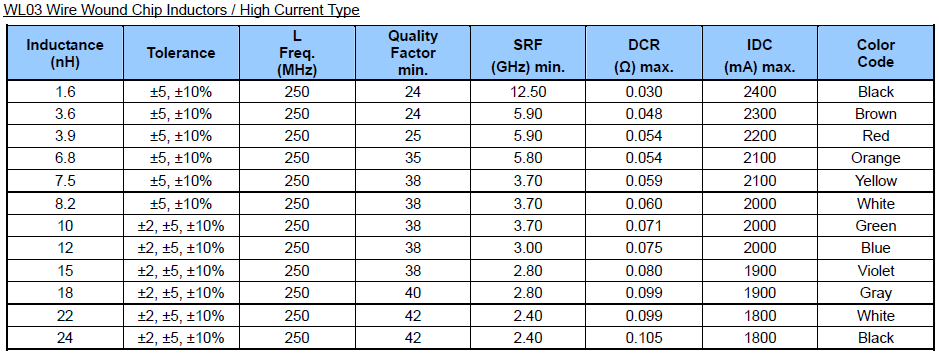

          High Current Electrical Specifications:

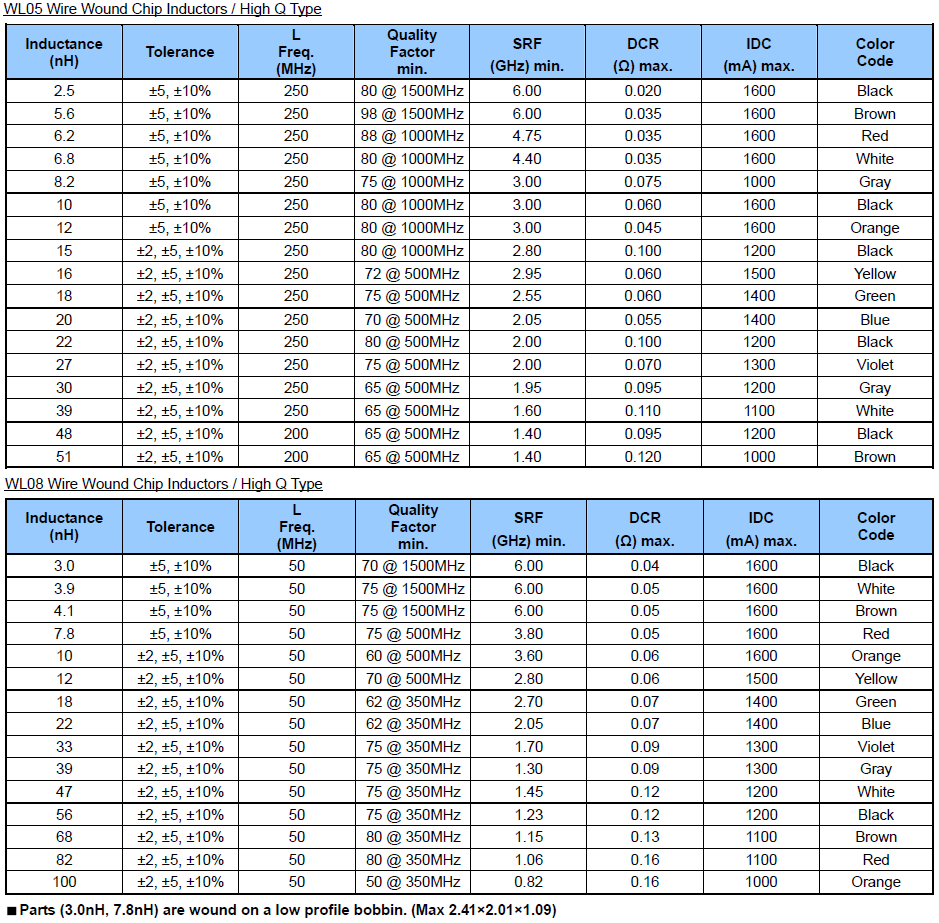

           High Q Electrical Specifications:

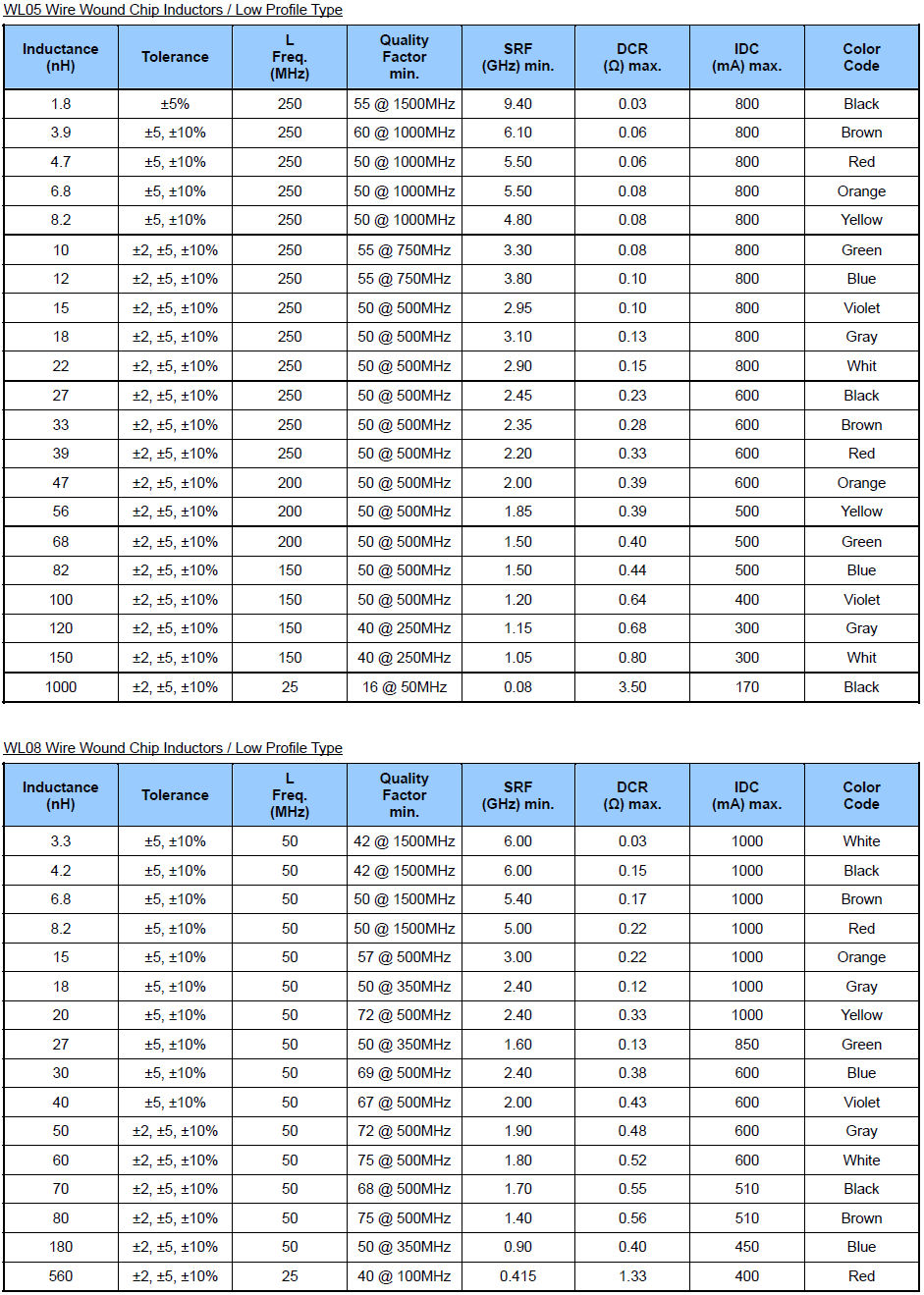

           Low Profile Electrical Specifications:

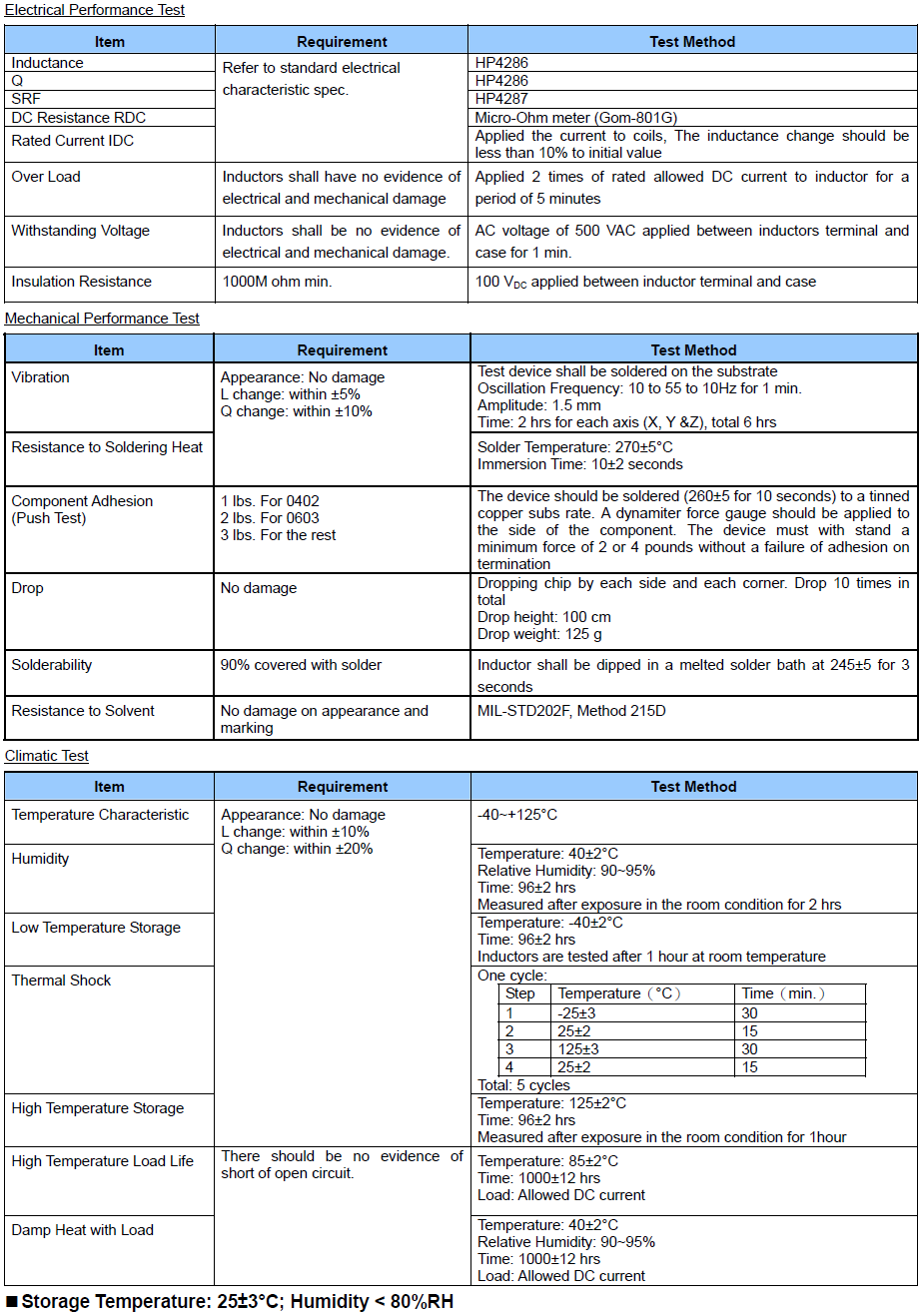

Environmental Characteristics:
