Multi-layer Ceramic Capacitor (MLCC)
晶片電容


體積小、重量輕
  Miniature size and light weight
容量大、性能優及極佳的信賴性
  High capacitance, high performance, and high reliability
可用於民生用及工業用電子機器、旁路應用與一般用途
  Consumer and industrial electronic equipment, bypass timing
  and general purpose


NPO X5R
Rated Voltage 6.3VDC ~ 3000VDC
Capacitance Range 1pF to 100μF
Capacitance Tolerance

Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		B = ±0.1pF
C = ±0.25pF
D = ±0.5pF
F = ±1%
G = ±2%
J = ±5% 		J= ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20%
Operating Temperature
-55℃ ~ +125℃ - 55℃ ~ +85℃
Capacitance Change 0 ± 30ppm/℃ ±15%
Capacitance Test:
@25℃ or referred to +25℃ 		1.0Vrms±0.2, 1kHz±10%
1.0Vrms±25, 1MHz±10% for
capacitance ≤ 1000pF 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor C＜30pF: Q ≥ 400 + 20C
C ≥ 30pF: Q ≥ 1000
0.1% Max. 		≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15%
Insulation Resistance 10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA


X7R Y5V
Rated Voltage 6.3VDC ~ 3000VDC
Capacitance Range 1pF to 100μF
Capacitance Tolerance

Note:
B, C, D: Cap.<10pF
F, G, J, K, M, Z: Cap. ≥ 10pF 		J = ±5%
K = ±10%
M = ±20%
Z = +80% ~ -20% 		M = ±20%
Z = +80% ~ -20%
Operating Temperature -55℃ ~ +125℃ - 25℃ ~ +85℃
Capacitance Change ±15% +30% ~ -80%
Capacitance Test:
@25℃ or referred to +25℃ 		1.0±0.2Vrms, 1kHz±10%
Q/Dissipation Factor ≥ 50V: 2.5% ~ 3%
25V: ≤ 3.5% ~ 10%
16V: ≤ 3.5% ~ 10%
10V: ≤ 5.0% ~ 10%
6.3V: ≤ 10% ~ 15% 		≥ 50V: 5% ~ 7%
25V: ≤ 5% ~ 9%
16V: ≤ 7% ~ 12.5%
10V: ≤ 12.5%
6.3V: ≤ 20%
Insulation Resistance 10GΩ or 500MΩ.μF, whichever is less at 25℃
Dielectric Strength
≤ 50V 250% of rated voltage for 5 seconds at 50mA
51V ~ 100V 300% of rated voltage for 5 seconds at 10mA
200V ~ 300V 200% of rated voltage for 5 seconds at 10mA
500V ~ 990V 150% of rated voltage for 5 seconds at 10mA
1000V ~ 3000V 120% of rated voltage for 5 seconds at 10mA

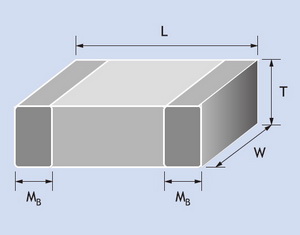

Dimensions
Inch (mm) 		0402 (1005) 0603 (1608) 0805 (2012)
L (mm) 1.00±0.05 1.60+0.15/-0.10 2.00±0.20
W (mm) 0.50±0.05 0.80+0.15/-0.10 1.25±0.20
T (mm) 0.50±0.05 0.80+0.15/-0.10 0.60~1.25±0.20
MB (mm) 0.25+0.05/-0.10 0.40±0.15 0.50±0.20

Dimensions
Inch (mm) 		1206 (3216) 1210 (3225) 1808 (4520) 1812 (4532)
L (mm) 3.20±0.20 3.20±0.40 4.50±0.40 4.50±0.40
W (mm) 1.60±0.20 2.50±0.30 2.03±0.25 3.20±0.30
T (mm) 0.80~1.60+0.30/-0.10 0.95~2.5±0.30 1.25~2.0±0.20 1.25~2.50±0.30
MB (mm) 0.60±0.20 0.75±0.25 0.75±0.25 0.75±0.25





　

　
