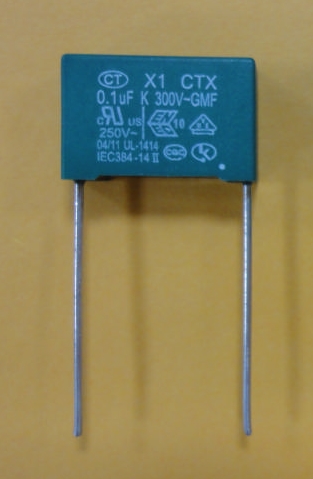

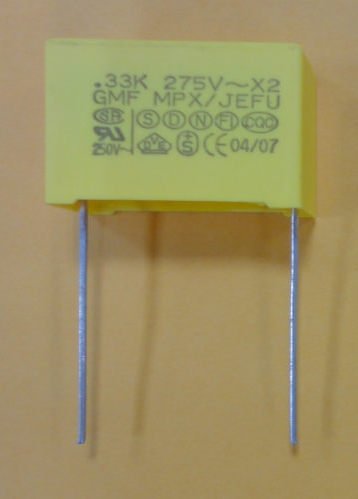

Metallized Polypropylene Film Capacitors (X1、X2)
金属化ドポリプロピレンフィルムコンデンサ (X1、X2)


ノイズ抑制と電源バイパス、多国の安全規格認証を持つ
   Provide interference suppression and safety approval
自己回復性を持つ
  Self-healing characteristic
高不燃性能を持つ (UL94 V-0)
  Active and passive flame retardant (UL94 V-0)

        Applications 用途:
        電源のノイズ抑制、スイッチ接点保護、スパークキラー電子回路、アンテナ接合、電源バイパスに適用
          Line bypass, antenna coupling, across-the-line, and spark killer circuits
        EMI フィルタ対応
          Available for EMI filter
        スイッチ電源起動時のサージ電圧抑制
          Switching power supply application
        産業用電器：UPS、パワーサプライ、LCD モニター、アダプターなど
          Business appliances such as UPS, power supply, LCD display, adapter, etc.
        家電：ブレンダー、扇風機、室内エアコン、洗濯機、冷蔵庫、ホームベーカリー、アンプ、AV製品など
          Household appliances such as blender, fan, air conditioner, washing machine, refrigerator, etc.

　　
Rated Voltage
定格電圧
 250VAC, 300VAC, 50/60Hz
Capacitance Range
静電容量範囲 		0.0022 ~ 10μF
Capacitance Tolerance
静電容量許容差 		J (±5%), K (±10%), M (±20%)
Dissipation Factor (DF)
誘電正接 		≤ 0.1% at 1KHz and 20℃
Withstand Voltage
耐電圧 		1200VAC, 60Hz or 2200VDC 1sec
Insulation Resistance (IR)
絶縁抵抗 		C ≤ 0.33μF, IR ≥ 30,000MΩ
C > 0.33μF, IR ≥ 10,000MΩ / μF
Climatic Category: In accordance with DIN40040 GMF
環境別:
 G = Minimum Limit Temperature…-40℃
M = Maximum Limit Temperature…+100℃
F = Humidity Category…Average relative humidity ≤ 75%, 95% for 30 days per year, continuously; 85% for the remaining days, occasionally.




　

　
