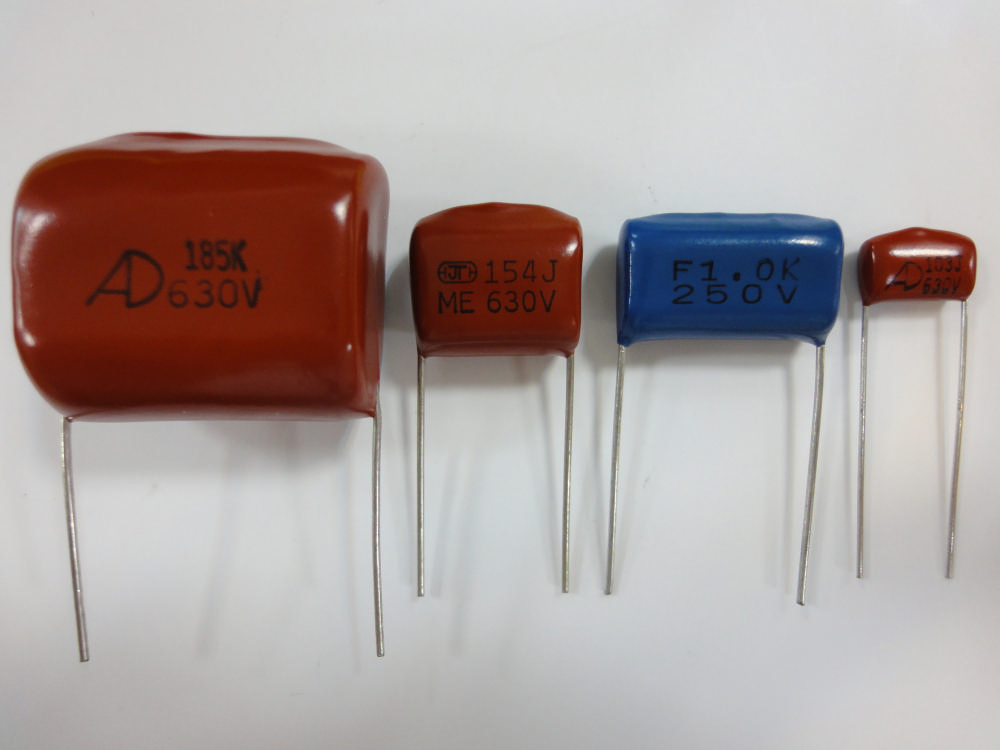

Metallized Polyester Film Capacitors (MEF)
金屬化聚乙酯薄膜電容器 (MEF)

環氧樹脂成型塗裝、防潮性佳
  Epoxy resin coating and high moisture resistance
無極性
  Non-inductive construction
具自癒性
  Self-healing characteristic
體積小、重量輕
  Miniature size and light weight


Rated Voltage
額定電壓 		100VDC ~ 630VDC
Capacitance Range
電容量範圍 		0.01 ~ 4.7μF
Capacitance Tolerance
容量誤差 		J(±5%), K(±10%), M(±20%)
Dissipation Factor
損耗因數(DF) 		≤ 1% MAX at 1KHz and 20℃
Insulation Resistance
絕緣阻抗(IR) 		C ≤ 0.33μF, IR ≥ 30,000MΩ
C > 0.33μF, IR ≥ 10,000MΩ / μF
Dielectric Strength
耐電壓 		150% of rated voltage for 60sec
Operating Temperature
操作溫度 		-40 ~ +85℃






　

　
