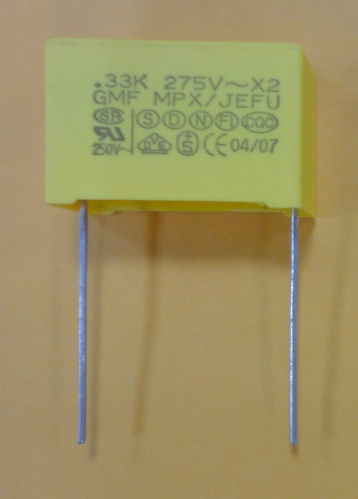

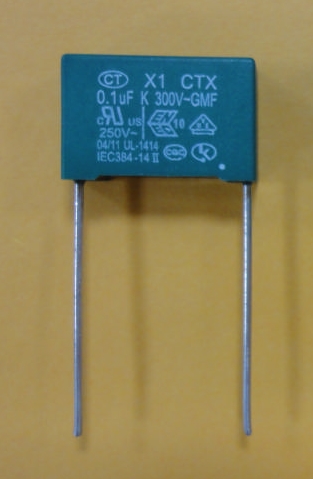

Metallized Polypropylene Film Capacitors (X1、X2)
金屬化聚丙烯薄膜電容  (X1、X2)

雜音抑制及電源跨接，通過多國安全規認證
  Provide interference suppression and safety approval
具自癒性
  Self-healing characteristic
絕佳的阻燃防火功能 (UL94 V-0)
  Active and passive flame retardant (UL94 V-0)

        Applications 用途:
        電源雜音抑制、開關接點保護、火花消除、天線耦合及電源旁路使用
          Line bypass, antenna coupling, across-the-line, and spark killer circuits
        EMI 電磁濾波
          Available for EMI filter
        抑制開關電源時產生的突波電壓
          Switching power supply application
        商用電器：不斷電系統、電源供應器、LCD顯示器、變壓器
          Business appliances such as UPS, power supply, LCD display, adapter, etc.
        家庭電器：果汁機、電風扇、室內空調、洗衣機、電冰箱、製麵包機、音響、視聽產品等等
          Household appliances such as blender, fan, air conditioner, washing machine, refrigerator,
Rated Voltage
額定電壓 		250VAC, 300VAC, 50/60Hz
Capacitance Range
電容量範圍 		0.0022 ~ 10μF
Capacitance Tolerance
容量誤差 		J (±5%), K (±10%), M (±20%)
Dissipation Factor(DF)
損耗因素 		≤ 0.1% at 1KHz and 20℃
Withstand Voltage
耐電壓 		1200VAC, 60Hz or 2200VDC 1sec
Insulation Resistance(IR)
絕緣阻抗 		C ≤ 0.33μF, IR ≥ 30,000MΩ
C > 0.33μF, IR ≥ 10,000MΩ / μF
Climatic Category:
In accordance with DIN40040 GMF
環境類別 		G = Minimum Limit Temperature…-40℃
M = Maximum Limit Temperature…+100℃
F = Humidity Category…Average relative humidity ≤ 75%, 95% for 30 days per year, continuously; 85% for the remaining days, occasionally.




　

　
