Metal Plate Cement Resistor (MPC Series)

FEATURES :


Compact type with safety design of non-flammability and insulation.
Low resistance and resilient to surge current.
Low inductance.



CHARACTERISTICS¡@©Ê ¯à¡G
ITEM
SPEC
REMARKS

Load life under high temperature

¡Ó5%

Rated voltage at 70¢J for 1,000 hours



Load life under high humidity

¡Ó5%

Rated voltage at 40¢J,95% RH for 1,000 hours



Temp. coeff. of resistance

¡Ó350 ppm/¢J

Room temp. + 100¢J



Short time overload

¡Ó2%

6.25 times the rated power for 5 seconds



Dielectric withstanding voltage

--------

500 volt 1 min



Insulation resistance

>10M£[

500 volt Insulation test



Flameproof







No evidence of flaming or arcing







AC voltage of 2,4,8,16,32 times the power

rating for 1min. (V¡Ø4 times max. working voltage)






For resistors operated in ambient temperature over 70¢J,
power rating must be derated in accordance with the

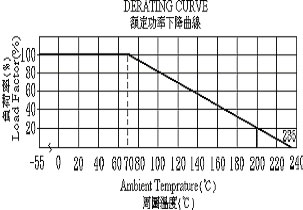

curve left.











DIMENSIONS¡G

Model

Rated

Power

(W)

Resistance

Range

£[

Tolerance

Dimension (mm)
A
B
C
d £p
MPC01 1 0.01~0.5

G¡G¡Ó2¢H





J¡G¡Ó5¢H





K¡G¡Ó10¢H

 10¡Ó1.0 10¡Ó1.0 5¡Ó0.5 0.8¡Ó0.05
MPC70
2
0.1~1.0
8¡Ó1.0
13¡Ó1.0
4¡Ó0.5
0.6¡Ó0.05
MPC76
0.01~0.05
8¡Ó1.0
13¡Ó1.0
4¡Ó0.5
0.6¡Ó0.05
MPC78 0.1~1.0 8.0¡Ó1.0 13¡Ó1.0 4¡Ó0.5 0.6¡Ó0.05
MPC72 3 0.10~1.0 13¡Ó1.0 13¡Ó1.0 5¡Ó0.5 0.6¡Ó0.05
MPC73 0.01~0.08 13¡Ó1.0 13¡Ó1.0 5¡Ó0.5 0.6¡Ó0.05
MPC71
5

0.1~1.0
18¡Ó1.0
14¡Ó1.0
5¡Ó0.5
0.6¡Ó0.05
MPC74
0.1~1.0
18¡Ó1.0
14¡Ó1.0
5¡Ó0.5
0.8¡Ó0.05
MPC75 0.01~0.08
18¡Ó1.0
14¡Ó1.0
5¡Ó0.5
0.8¡Ó0.05
MPC75 1.5~2.2
18¡Ó1.0
14¡Ó1.0
5¡Ó0.5
0.6¡Ó0.05
MPC722 10 0.22~3.3
18¡Ó1.0
26¡Ó1.0
5¡Ó0.5
0.8¡Ó0.05
MPC708 2+2 0.1~1.0
9.0¡Ó1.0
26¡Ó1.0
5¡Ó0.5
0.6¡Ó0.05
MPC733 3+3 0.1~1.0 13¡Ó1.0
26¡Ó1.0
5¡Ó0.5
 0.6¡Ó0.05
MPC735 0.01~0.08 13¡Ó1.0
26¡Ó1.0
5¡Ó0.5
 0.6¡Ó0.05
MPC725 5+5 0.1~1.0 18¡Ó1.0
26¡Ó1.0
5¡Ó0.5
 0.8¡Ó0.05




¡°1W¸}¶Z = 5¡Ó0.5 mm





...............................................................................................................................................................................................................................................
