Thick Film Chip Resistor (CR Series)



Features :

Small and Light Weight
Excellent Heat Resistance and Moisture Resistance
Taping & Bulk Cassette are available for Automatic Pick-and-Place Machines.
Lead Free Products are available.

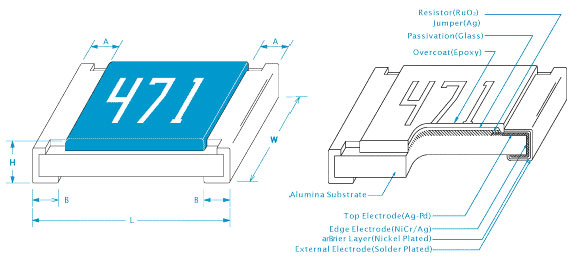

Construction & Dimension :

Unit: mm
Type Inch Metric L W H A B
CR-01 0201 0603 0.60±0.03 0.30±0.03 0.23±0.03 0.15±0.05 0.15±0.05
CR-02 0402 1005 1.00±0.50 0.50±0.05 0.35±0.05 0.20±0.10 0.25±0.10
CR-03 0603 1608 1.60±0.10 0.80±0.10 0.45±0.10 0.30±0.20 0.30±0.20
CR-05 0805 2012 2.00±0.10 1.25±0.10 0.50±0.10 0.35±0.20 0.40±0.20
CR-06 1206 3216 3.10±0.10 1.55±0.10 0.55±0.10 0.50±0.25 0.50±0.25
CR-10 1210 3225 3.20±0.20 2.60±0.15 0.55±0.10 0.50±0.25 0.50±0.25
CR-0A 2010 5025 5.00±0.20 2.50±0.15 0.55±0.10 0.60±0.25 0.50±0.25
CR-12 2512 6332 6.35±0.20 3.20±0.15 0.55±0.10 0.60±0.25 0.50±0.25

  Thick Film Chip Resistor Characteristics



Characteristics :

Type CR-01 CR-02 CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/20 W 1/16 W 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

-55℃ ~ +125℃

Max. Working

Voltage

15V 50V 50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

50V 100V 100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

50V 100V 100V 300V 500V 500V 500V 500V
Jumper < 50mΩ
Resistance& TCR (ppm/℃)
Tolerance 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5%

1Ω~9.76Ω

10Ω~1MΩ

1.1MΩ~10MΩ

±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200 ±200
- ±200 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100
- - - ±200 - ±200 - ±200 - ±200 - ±200 - ±200 - ±200

Jumper Rated

Current

0.5A 1A 1A 2A 2A 2A 2A 2A
Remarks: Resistance range and tolerance for standard value, any special values on request.

Power Derating Curve :

The power that the resistors can dissipate depends on the operating ambient temperature as the chart shown (left).




  Low Ohmic Thick Film Chip Resistor



Features :

Low Inductance
Battery Charge Current Sensing
Highly Reliable Multilayer Electrode Construction
Higher Component and Equipment Reliability
Excellent Performance at High Frequency
Reduced Size of Final Equipment

Applications :

Televisions
Audio Recorders
Telecommunication Equipment
Notebook Computers
Battery Chargers
Desktop Computers

Marking Methods :

±1%

±5%

CR-03 ▲Letter R is decimal point.
▲22 Means 220mΩ.

±1%

±5%

CR-05

CR-06

CR-0A

CR-12

▲Letter R is decimal point.
▲050 Means 50mΩ.

Characteristics :

Type CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

-55℃ ~ +125℃

Max. Working

Voltage

50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

100V 300V 500V 500V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance 1% 5% 1% 5% 1% 5% 1% 5% 1% 5% 1% 5%

0.02Ω~0.1Ω

0.11Ω~0.976Ω

±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500 ±1500
±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500 ±500
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

  High Ohmic Thick Film Chip Resistor



Features :

Reduced Size of Final Equipment
Low Assembly Costs
Highly Reliable Multilayer Electrode Construction
High Maximum Permissible Voltage

Applications :

Measuring Equipment
Telecommunication Equipment
Computers
Televisions

Characteristics :

Type CR-03 CR-05 CR-06 CR-10 CR-0A CR-12
Power Rating 1/10 W 1/8 W 1/4 W 1/3 W 1/2 W 1 W

Operating

Temperature Range

-55℃ ~ +125℃

Max. Working

Voltage

50V 150V 200V 200V 200V 200V

Max. Overload

Voltage

100V 300V 400V 400V 400V 400V

Dielectric

Withstanding Voltage

100V 300V 500V 500V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance 5% 5% 5% 5% 5% 5%

11MΩ~20MΩ

22MΩ~39MΩ

±200 ±200 ±200 ±200 ±200 ±200
±400 ±400 ±400 ±400 - -
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

  High Precision Chip Resistors



Features :

Reduced Size of Final Equipment
Low Assembly Costs
Higher Component and Equipment Reliability
Complete High Precision SMD Family

Applications :

Complete High Precision SMD Family
Power Supplies
EDP
Telecommunication Equipment

Characteristics :

Type CR-02 CR-03 CR-05 CR-06 CR-10
Power Rating 1/16 W 1/10 W 1/8 W 1/4 W 1/3 W

Operating Temperature Range

-55℃ ~ +125℃

Max. Working Voltage

50V 50V 150V 200V 200V

Max. Overload Voltage

100V 100V 300V 400V 400V

Dielectric Withstanding Voltage

100V 100V 300V 500V 500V
R Value & Tolerance % & TCR (ppm/℃)
Tolerance ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5% ±0.1% ±0.5%

10Ω~1MΩ

- ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100 ±100
Remarks: Resistance range & tolerance are standard values; any other values are available upon request.

Application Example :
