ITEM 項 目
|
SPEC 規 格
|
REMARKS 備 註
|
|
Load life under high temperature
高溫負荷壽命
|
±1.5% |
JIS C 5201-1 Rated voltage at 70℃ for 1,000 hours
(4.25.1) 額定電壓70℃ 1,000 小時
|
|
Load life under high humidity
耐濕負荷壽命
|
±5% |
JIS C 5201-1 Rated voltage at 40℃,95% RH for
1,000 hours
(4.24) 額定電壓40℃,95% RH 1,000小時
|
|
Temp. coeff. of resistance
溫度係數
|
< 1K= ±500 PPM/℃
≦100KΩ=±300 ppm/℃
>100KΩ=±200 ppm/℃ |
JIS C 5201-1 Room temp. + 100℃，30min
室溫 + 100℃，30分鐘
|
|
Short time overload
短時間過負荷
|
±1%
|
JIS C 5201-1 6.25 times the rated power for 5
seconds
(4.13) 6.25倍額定功率 5 秒
|
|
Temperature cycling
溫度循環
|
±1% |
JIS C 5201-1 5 cycles for –25℃±3℃(30min)；room
temp.(30min)
(4.19) ~ +85℃±3℃(30min) room temp. (30min)
|
|
Resistance to soldering heat
焊錫耐熱 |
±1% |
JIS C 5201-1 260℃±5℃ for 10 seconds(焊錫槽)
(4.18) 350℃±10℃ for 3.5 seconds(手焊錫)
|
|
Insulation resistance
絕緣電阻
|
>1,000MΩ |
JIS C 5201-1 500 volt Insulation test 1min
(4.6.1.1) 500 V絕緣測試電壓1分鐘
|
|
Pulse withstanding voltage
脈衝
|
±20%
|
|
|
■The following discharge cycle is repeated
in the circuit of the left fig. 2.5 sec. ON 2.5 sec. OFF 50 cycles.
With following DC pulse test voltage
■ Pulse voltage:1/6W,S1/4W：3KV.
≧1/4W：100KΩ：(3KV)；100KΩ-620KΩ：(5KV)；>
620KΩ：(10KV)
|
|
 |
|
| Various type of forming & taping are
available |
| 提供插裝的造型與帶裝 |
| Coating
color：RMU1/4W,RMU1/6W、dark blue, other、pink。 |
| 塗裝顏色：RMU1/4W,RMU1/6W藍色,其他粉紅色。 |
|

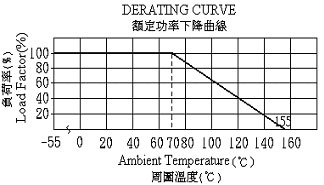

| RATING、DIMENSIONS 額 定、尺 寸 |
|
Model
型名
|
Power
Rating
額定功率
(W)
|
Resistance
Range E-24
阻值範圍
Ω
|
Maximum
Working
Voltage
最高使用電壓
|
Dielectric
Withstanding
Voltage
耐電壓
|
Dimension 尺寸 (mm)
|
|
L
|
D φ
|
ι
|
d φ
|
|
RMU1/6W、RMS1/4W
|
1/6,1/4
|
10Ω ~ <100M
|
300V
|
300V
|
3.3±0.3
|
1.8±0.2
|
28±2
|
0.45±0.05
|
|
RMU1/4W、RMS1/2W
|
1/4,1/2
|
10Ω ~ <100M
|
1600V
|
700V
|
6±0.3
|
2.4±0.1
|
28±2
|
0.6±0.05
|
|
RMU1/2W、RMS1W
|
1/2,1
|
10Ω ~ <100M
|
3500V
|
700V
|
9±0.5
|
3.3±0.5
|
30±3
|
0.6±0.05
|
|
RMU1W 、RMS2W
|
1,2
|
10Ω ~ <100M
|
7000V
|
700V
|
12  |
4.5±0.5
|
38±3
|
0.8±0.05
|
|
RMU2W 、RMS3W
|
2,3
|
10Ω ~ <100M
|
10000V
|
700V
|
16 |
5.5±0.5
|
38±3
|
0.8±0.05
|
|
RMH1W
|
1
|
10Ω ~ 68M
|
10000V
|
700V
|
16 |
5.5±0.5
|
38±3
|
0.8±0.05
|
UL1676 & c-UL (CSA C22.2 No.
1-98)(File No.E220321)；EN 60065 File No：814991；CB Ref Certif No.SE-56152
...............................................................................................................................................................................................................................................
|
High resistance value is 10Ω~<100MΩ.
