金屬板電阻器 (MPC Series)

FEATURES :



Compact type with safety design of non-flammability and insulation.
Low resistance and resilient to surge current.
Low inductance.
特性：
不燃與絕緣之安全設計
低阻值耐突波佳
低電感



CHARACTERISTICS　性 能：
ITEM 項 目
SPEC 規 格
REMARKS 備 註

Load life under high temperature

高溫負荷壽命

 ±5%

Rated voltage at 70℃ for 1,000 hours

額定電壓70℃ 1,000 小時

Load life under high humidity

耐濕負荷壽命

 ±5%

Rated voltage at 40℃,95% RH for 1,000 hours

額定電壓40℃,95% RH 1,000 小時

Temp. coeff. of resistance

溫度係數

 ±350 ppm/℃

Room temp. + 100℃

室溫 + 100℃

Short time overload

短時間過負荷

±2%

6.25 times the rated power for 5 seconds

6.25倍額定功率 5 秒

Dielectric withstanding voltage

耐電壓

 --------

500 volt 1 min

500 V 1分鐘

Insulation resistance

絕緣電阻

 >10MΩ

500 volt Insulation test

500 V絕緣測試電壓

Flameproof

不燃性







No evidence of flaming or arcing 無燃燒現象







AC voltage of 2,4,8,16,32 times the power

rating for 1min. (V≦4 times max. working voltage)

2,4,6,8,16,32倍AC額定功率 1 分鐘

(V≦4倍最高使用電壓)

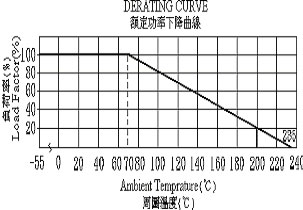

For resistors operated in ambient temperature over 70℃,
power rating must be derated in accordance with the
curve left.

在周圍溫度超過70℃使用時，應依據左圖之額定功率下
降曲線，輕減其 額定功率.








DIMENSIONS　尺 寸：

Model

型名

Rated

Power

額定功率

(W)

Resistance

Range

阻值範圍

Ω

Tolerance

容許差
Dimension 尺寸 (mm)
A
B
C
d φ
MPC01 1 0.01~0.5

G：±2％





J：±5％





K：±10％

 10±1.0 10±1.0 5±0.5 0.8±0.05
MPC70
2
0.1~1.0
8±1.0
13±1.0
4±0.5
0.6±0.05
MPC76
0.01~0.05
8±1.0
13±1.0
4±0.5
0.6±0.05
MPC78 0.1~1.0 8.0±1.0 13±1.0 4±0.5 0.6±0.05
MPC72 3 0.10~1.0 13±1.0 13±1.0 5±0.5 0.6±0.05
MPC73 0.01~0.08 13±1.0 13±1.0 5±0.5 0.6±0.05
MPC71
5

0.1~1.0
18±1.0
14±1.0
5±0.5
0.6±0.05
MPC74
0.1~1.0
18±1.0
14±1.0
5±0.5
0.8±0.05
MPC75 0.01~0.08
18±1.0
14±1.0
5±0.5
0.8±0.05
MPC75 1.5~2.2
18±1.0
14±1.0
5±0.5
0.6±0.05
MPC722 10 0.22~3.3
18±1.0
26±1.0
5±0.5
0.8±0.05
MPC708 2+2 0.1~1.0
9.0±1.0
26±1.0
5±0.5
0.6±0.05
MPC733 3+3 0.1~1.0 13±1.0
26±1.0
5±0.5
 0.6±0.05
MPC735 0.01~0.08 13±1.0
26±1.0
5±0.5
 0.6±0.05
MPC725 5+5 0.1~1.0 18±1.0
26±1.0
5±0.5
 0.8±0.05




※1W腳距 = 5±0.5 mm





...............................................................................................................................................................................................................................................
