ITEM 項
|
SPEC. 規 格
|
REMARKS 備 註
|
|
Stocks Temperature Range
|
-55∼+150℃
|
Resistance Tolerance: ±5%、±10%
|
|
Load life under high temperature
高溫負荷壽命
|
±5%
|
JIS C 5201-1 Rated voltage at 70℃ for 1000 hours
(4.25.1) 額定電壓70℃ 1000 小時
|
|
Load life under high humidity
耐濕負荷壽命
|
± 5%
|
JIS C 5201-1 Rated voltage at 40℃,95% RH for 1000
hours
(4.24) 額定電壓40℃,95% RH 1000 小時
|
|
Short time overload
短時間過負荷
|
± 1%
|
JIS C 5201-1 6.25 times the rated power for 5
seconds
(4.13) 6.25倍額定功率 5 秒
|
|
Temperaturecoefficient of resistance
溫度係數
|
± 250ppm
|
JIS C 5201-1 measured at room temperature and room
temperature+100 ℃
|
|
Insulation resistance
絕緣電阻 |
>1,000MW |
JIS C 5201-1 500 V Insulation test 1min
(4.6.1.1) 500 V絕緣測試電壓1min |
|
SURFACE TEMPERATURE RAISE VS.LOADED POWER
|

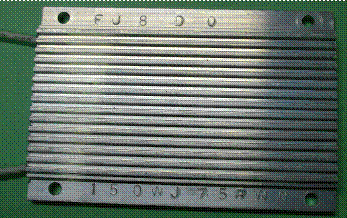

成品照片 |
 |
|
| RATING, DIMENSIONS 額定, 尺寸 |
|
|
|
|
Type
|
Rated
Power
額定功率
|
Resistance Range (Ω)
|
Maximum
Working
Voltage
最高使用電壓
|
Dielectric
Withstanding
Voltage
耐電壓
|

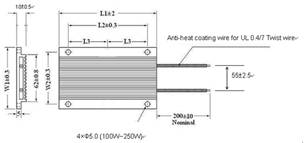

Dimension (mm)
|
|
Standard Type
|
Non-inductive Type
|
L1±2
|
L2±0.3
|
W1±0.3
|
W2±0.3
|
|
GH 100
|
100W
|
1Ω∼1.0KΩ
|
2Ω∼500Ω
|
|
1,500V
|
90
|
70
|
80
|
70
|
|
GH 150
|
150W
|
1Ω∼1.2KΩ
|
2Ω∼600Ω
|
|
1,500V
|
120
|
100
|
80
|
70
|
|
GH 200
|
200W
|
1Ω∼1.4KΩ
|
2Ω∼700Ω
|
|
1,500V
|
150
|
130
|
80
|
70
|
|
GH 250
|
250W
|
1Ω∼1.6KΩ
|
2Ω∼800Ω
|
|
1,500V
|
180
|
160
|
80
|
70
|
|
GH 300
|
300W
|
1Ω∼1.8KΩ
|
2Ω∼900Ω
|
|
1,500V
|
210
|
190
|
80
|
70
|
|
GH 400
|
400W
|
1Ω∼2.0KΩ
|
2Ω∼1KΩ
|
|
1,500V
|
270
|
250
|
80
|
70
|
|
GH 500
|
500W
|
1Ω∼2.5KΩ
|
2Ω∼1.2KΩ
|
|
1,500V
|
330
|
310
|
80
|
70
|
|
...............................................................................................................................................................................................................................................
|
High power rating, and ultra precision.
