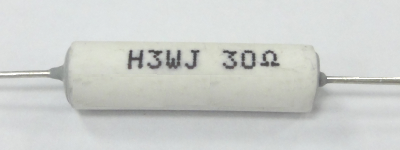

HIGH PULSE WIRE WOUND RESISTOR
高脈衝繞線電阻器 (HVW系列)
特性 FEATURES:
 防爆式繞線高脈衝特性
    The ANTI-BURST Type wire wound type High pulse
長期穩定性佳
    Stable and long service life
可承受25KV突波的衝擊
    Acceptable pulse of 25KV discharge

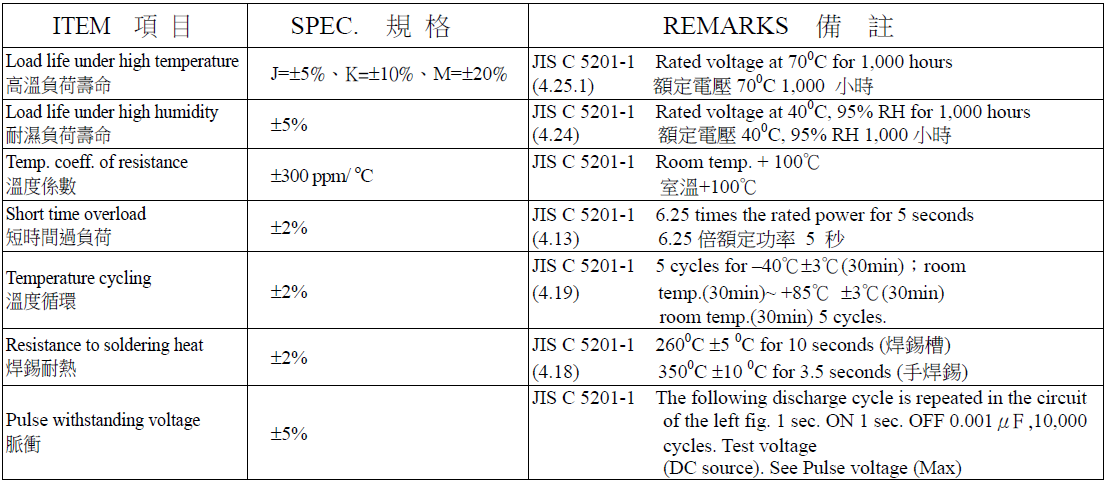

          性能 CHARACTERISTICS :

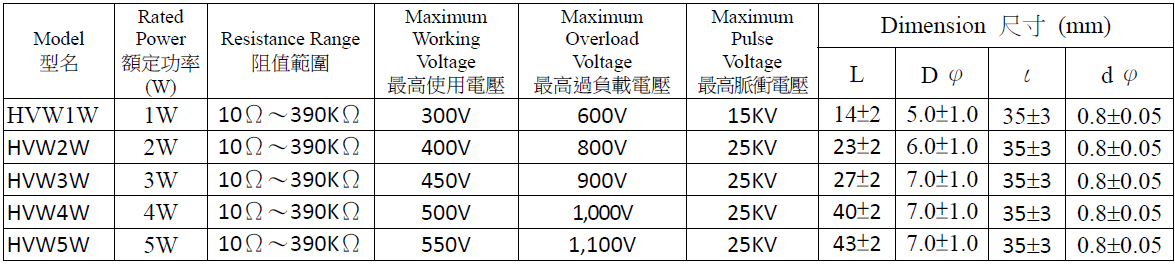

           規格 Ratings :





　

　
